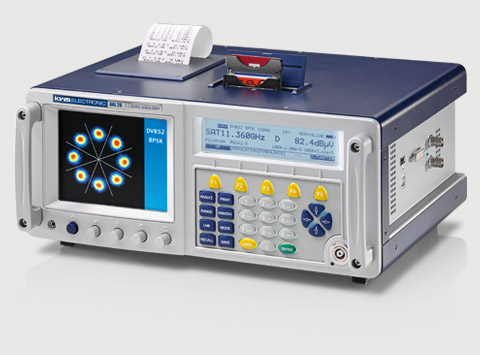

Ecran haute resolution 5.5" colour TFT |
| ■ |
gamme de fréquence 5-2,150 MHz |
| ■ |
DVB-S, DVB-S2, DVB-C, DVB-T, AM, FM |
| ■ |
Return path: RF level, BER, MER, and constellation diagram in connection with VAROS 107
|
| ■ |
MPEG-4 SD & HD ,2 slotq CI |
| ■ |
Diagramme constélation en,temps réel
|
| ■ |
Ripple voltage and phase jitter detection |
| ■ |
MER jusqu'a 40 dB (CATV), S/N (analog) jusqu'a 55 dB |
| ■ |
Digital analyser for all ranges, tilt measurement, ingress measurement
|
| ■ |
Echo measurement for DVB-T (Impulse response) |
| ■ |
Videotext analog/digital, DVB subtitling |
| ■ |
DiSEqC, UNICABLE, JESS |
| ■ |
Programmable functions for addressable outlets
|
| ■ |
Signal quality monitoring with data grabber |
| ■ |
Printer for measurement results and screenshots |
| ■ |
USB, SCART in/out, DVI out, Ethernet (RJ 45) |
| ■ |
Lithium-Ionen rechargeable battery pack 14,4 V/6,6 |
|
